STRONG. RELIABLE. AFFORDABLE. BUILT TO LAST.
FIXED-SPEED SCREW
COMPRESSORS
18 years proven in Africa's harshest environments. Oversized air ends, and OEM accountability - from 7.5kW right through to 250kW.
FIXED-SPEED RANGE
AFRICA'S INDUSTRIAL
WORKHORSE.

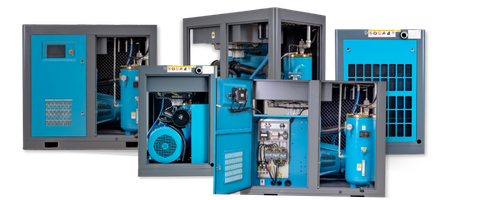

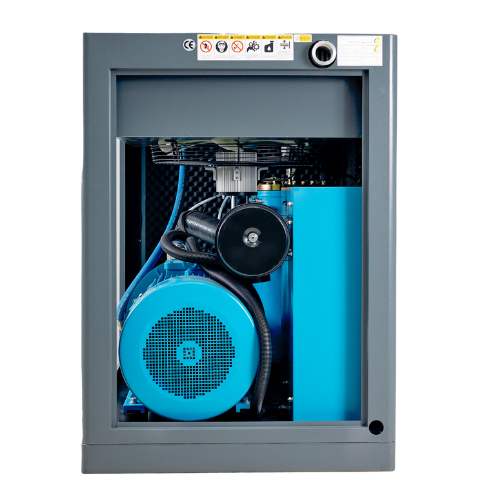

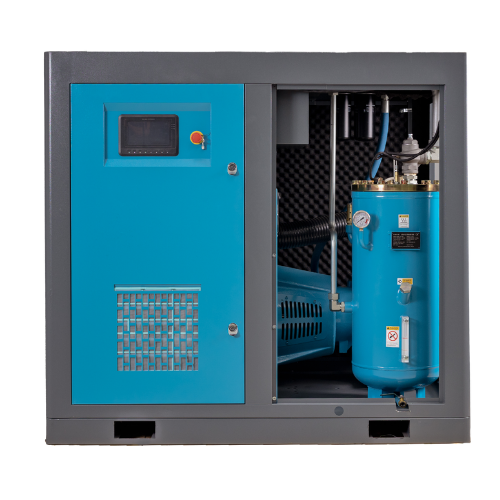

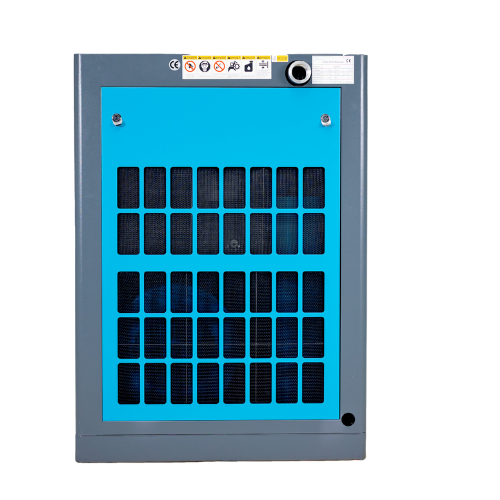

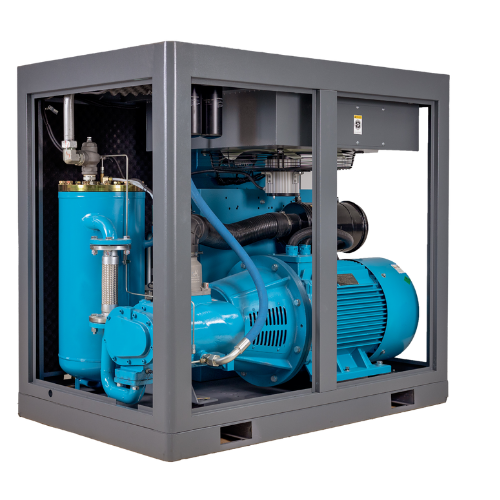

The Supa-Air Fixed-speed screw compressor range has been proven across South Africa’s most demanding industrial environments for over 18 years. Purpose-designed for workshops, manufacturing plants, mining operations, and beyond – these are machines built to perform and keep performing.
Oversized air ends running at lower RPM deliver cooler operation, reduced component wear, and significantly extended service life. It’s not a budget shortcut, it’s smart engineering. Lower rotational speed means less friction, less heat, and more hours between services.
Every Fixed-speed Compressor are backed by Supa-Air’s OEM warranty and our national service network.
KEY FEATURES
ENGINEERED TO
OUTLAST.
Every design decision in the Fixed-Speed range is made with one goal: maximum reliability and minimum cost of ownership in real African operating conditions.
BUILT FOR AFRICAN CONDITIONS
Rated to operate in ambient temperatures up to 50°C. Dust-resistant design with oversized filtration. SANS 347 and ASME Division VIII certified. Meets OHS Act and PER 2009 standards.
AIR-END TECHNOLOGY
New Generation 5:6 Lobe Profile Rotors with double screw technology. Oversized and precision-balanced for maximum compression efficiency and longevity. No gears needed - direct drive.
LOWER RPM. COOLER RUNNING.
Oversized air ends run at significantly lower RPM than standard designs. Less friction, less heat, less wear. Cooler discharge temperatures extend oil life, air-end life, and separator life.
SKF INDUSTRIAL BEARINGS
SKF bearings throughout - on both the air end and the motor. Globally trusted precision engineering that handles sustained high-load operation without compromise.
ELECTRONIC PLC CONTROLLER
Built-in protection and alerts: phase faults, low voltage, overheating, service interval reminders, low oil, overload, and sensor failure. Real-time display of running hours, pressure and load status.
MINIMAL DOWNTIME. MAXIMUM SUPPORT.
Thanks to our extensive spare parts stock, we’re ready to serve customers countrywide, minimizing downtime and keeping your operations running smoothly.
HOW IT WORKS
SCREW COMPRESSION
EXPLAINED
3-STAGE PROCESS
01
AIR INTAKE
Ambient air enters through the intake filter, removing dust and particulates before compression begins. The oversized filter protects the air end in dusty African environments.
02
SCREW COMPRESSION
Two interlocking helical rotors (5:6 lobe profile) compress air continuously and smoothly - no pulsation. Oil injected during compression cools, seals, and lubricates simultaneously.
03
OIL SEPERATION & DELIVERY
Compressed air passes through a large seperator vessel with baffle plates, reducing residual oil to under 3ppm. Clean, pressurised air is delivered to your system at your set pressure (4-13 bar).
TECHNICAL SPECIFICATIONS
All specifications at 7.5 bar working pressure · 380V / 50Hz · Specifications subject to change. Download PDF brochure for latest data.
| Air Flow (m³/min) | Power | Noise | Connection | Dimension (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | 0.7 MPa | 0.8 MPa | 1.0 MPa | 1.3 MPa | (kW) | (dB) | BSP / DN | L (mm) | W (mm) | H (mm) | (kg) |
| SAF-22 | 4.15 | 3.7 | 3.2 | 2.8 | 22 | 68 | G1 | 1330 | 830 | 1265 | 410 |
| SAF-30 | 5.7 | 5.2 | 4.5 | 3.8 | 30 | 68 | G1 | 1330 | 830 | 1265 | 520 |
| SAF-37 | 6.9 | 6.5 | 5.6 | 4.9 | 37 | 69 | G1 1/2 | 1500 | 940 | 1415 | 655 |
| SAF-45 | 8.1 | 7.5 | 6.75 | 5.9 | 45 | 70 | G1 1/2 | 1500 | 940 | 1415 | 730 |
| SAF-55 | 10.3 | 9.5 | 8.3 | 7.8 | 55 | 70 | G2 | 1600 | 1060 | 1470 | 950 |
| SAF-75 | 13 | 12.8 | 11 | 9.5 | 75 | 72 | G2 | 2000 | 1120 | 1590 | 1170 |

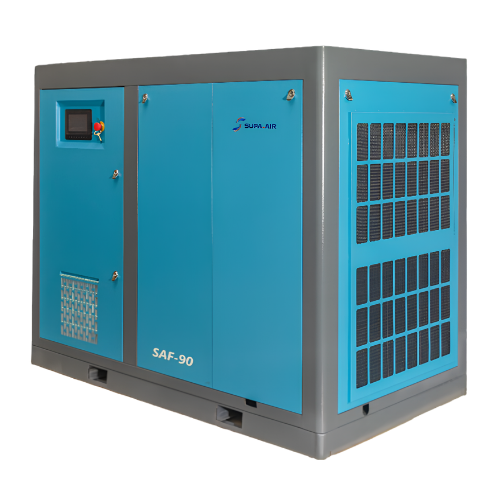

| SAF-90 | 16.7 | 15.5 | 14 | 12.5 | 90 | 72 | G2 | 2000 | 1120 | 1590 | 1390 |
| SAF-110 | 20.8 | 19.6 | 17.8 | 15.5 | 110 | 72 | DN65 | 2400 | 1630 | 1980 | 2280 |
| SAF-132 | 24.1 | 23.2 | 19.5 | 17 | 132 | 72 | DN65 | 2400 | 1630 | 1980 | 2430 |
| SAF-160 | 28.8 | 27.8 | 23 | 20 | 160 | 72 | DN80 | 2800 | 1828 | 2150 | 2950 |
| SAF-185 | 33.2 | 31.2 | 27.5 | 25.8 | 185 | 72 | DN80 | 2800 | 1828 | 2150 | 3073 |
| SAF-250 | 43 | 41.5 | 38 | 34.9 | 250 | 76 | DN100 | 4260 | 2182 | 2170 | 5200 |
APPLICATIONS
WHERE IT
GETS TO WORK.
WORKSHOPS
Reliable, cost-effective compressed air for trade workshops of all sizes. Easy to operate and maintain.
MANUFACTURING PLANTS
Consistent, sustained air supply for pneumatic tooling, automations systems, and production lines.
AUTOMOTIVE INDUSTRY
Spray booths, assembly pneumatics, tyre inflations, engine testing. Pair with air treatment for ISO quality air.
FOOD & BEVERAGE
Bottling lines, packaging, conveying, and CIP processes. Pair with Supa-Air 5-stage filtration for ISO 8573-1 compliance.
MINING & HEAVY INDUSTRY
Extreme dust, heat, and continuous duty - the Fixed-speed range is engineered for exactly these conditions. Heavy-duty filtration standard.
AGRICULTURAL SECTOR
Reliable, low-maintenance performance in remote dusty farm environments. OEM parts available nationally for minimal downtime.
